UL-FM 2 or 4 Loops Fire Control Panel K14X0

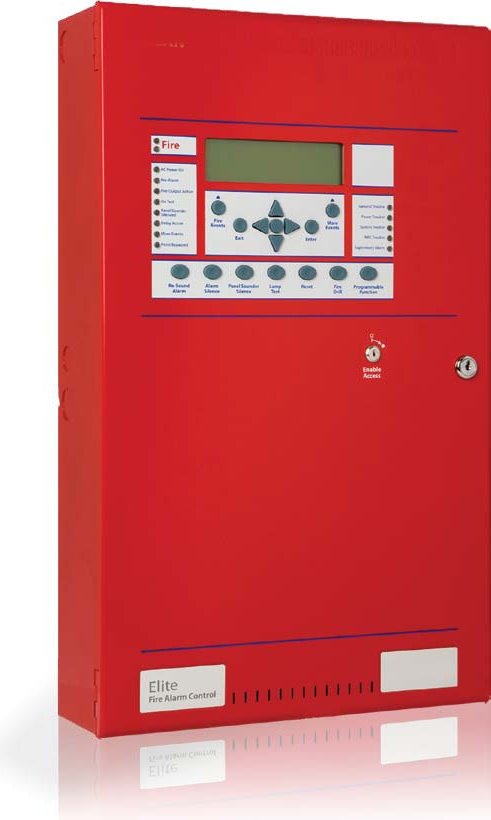

UL/FM Analogue Addressable 2 or 4 Loops Fire Control Panel Elite K14X0 Kentec
Description

K14X0 - UL/FM Analogue Addressable 2 or 4 Loops Fire Alarm Control Panel Elite - Kentec

K1460-10 - 2 Analogue loops Apollo protocol - Red cabinet

K1460-40 - 2 Analogue loops Apollo protocol - Grey cabinet

K1460-13 - 2 Analogue loops Apollo protocol - Red cabinet with printer

K1460-43 - 2 Analogue loops Apollo protocol - Grey cabinet with printer

K1420-10 - 2 Analogue loops Hochiki protocol - Red cabinet

K1420-40 - 2 Analogue loops Hochiki protocol - Grey cabinet

K1420-13 - 2 Analogue loops Hochiki protocol - Red cabinet with printer

K1420-43 - 2 Analogue loops Hochiki protocol - Grey cabinet with printer

K1480-10 - 4 Analogue loops Apollo protocol - Red cabinet

K1480-40 - 4 Analogue loops Apollo protocol - Grey cabinet

K1480-13 - 4 Analogue loops Apollo protocol - Red cabinet with printer

K1480-43 - 4 Analogue loops Apollo protocol - Grey cabinet with printer

K1440-10 - 4 Analogue loops Hochiki protocol - Red cabinet

K1440-40 - 4 Analogue loops Hochiki protocol - Grey cabinet

K1440-13 - 4 Analogue loops Hochiki protocol - Red cabinet with printer

K1440-43 - 4 Analogue loops Hochiki protocol - Grey cabinet with printer

The Elite analog addressable Fire Control Panel supports 2 or 4 SLC loops for a total of 500 primary points or 800 points using subpoints.
SLC loop communications uses standard twisted pair cabling, shielded cable is not necessary.
The panel may be configured with various communication cards; Communications options support central station monitoring, Virtual Panel, and networking.
The Panel can be configured as a stand alone panel with just a few devices for a small building, it can also operate as the building system and can be part of a network with a total of 64 nodes serving a multiple building campus or a very large facility.
Auto Learn capability provides a convenient method to troubleshoot new installations before final programming is loaded.

FEATURES & BENEFITS

  • UL 864 9th Edition listed
  • Multi-Loop 2 Analog Addressable Loops Field upgradable to 4
  • 126 primary points per loop
  • Powerful, network wide cause and effects (500 total). Fully user programmable by point or zone.
  • 800 points per panel when using devices with sub-points
  • Up to 10,000 ft. wiring length on SLC loop
  • 64 Panels on a network
  • Programmable through a PC connection to the panel, or through keypad
  • Programmable relays – 5
  • Supervised Powered Outputs – 3
  • Programmable Notification Appliance Circuits: 4
  • Power per NAC: 1.6 Amps Max
  • Programmable outputs on SLC loop
  • Programmable Function button on front display
  • Fire Drill button on front display
  • Day and night sensitivity settings (user programmable)
  • Power Supply: 5.25 Amp, regulated & integrated
  • LCD Display: 8x40
  • Zonal Mode: Annunciation by zone w/o individual relationships
  • Panel Ring Modes: Common, Zonal, Stage 2
  • NAC Outputs programmable as Continuous, March, Temporal
  • Program Cause and Effects AND, OR, or Any Two (Cross Zone)
  • Battery size: Up to 17 Ah in standard enclosure; up to 52 Ah with external cabinet
  • Access levels: 3
  • Access key switch: Yes
  • Recognized for use in High Rise
  • One man walk test – Fire Test Mode
  • Available with semi flush trim ring
  • Available in Red or Grey
