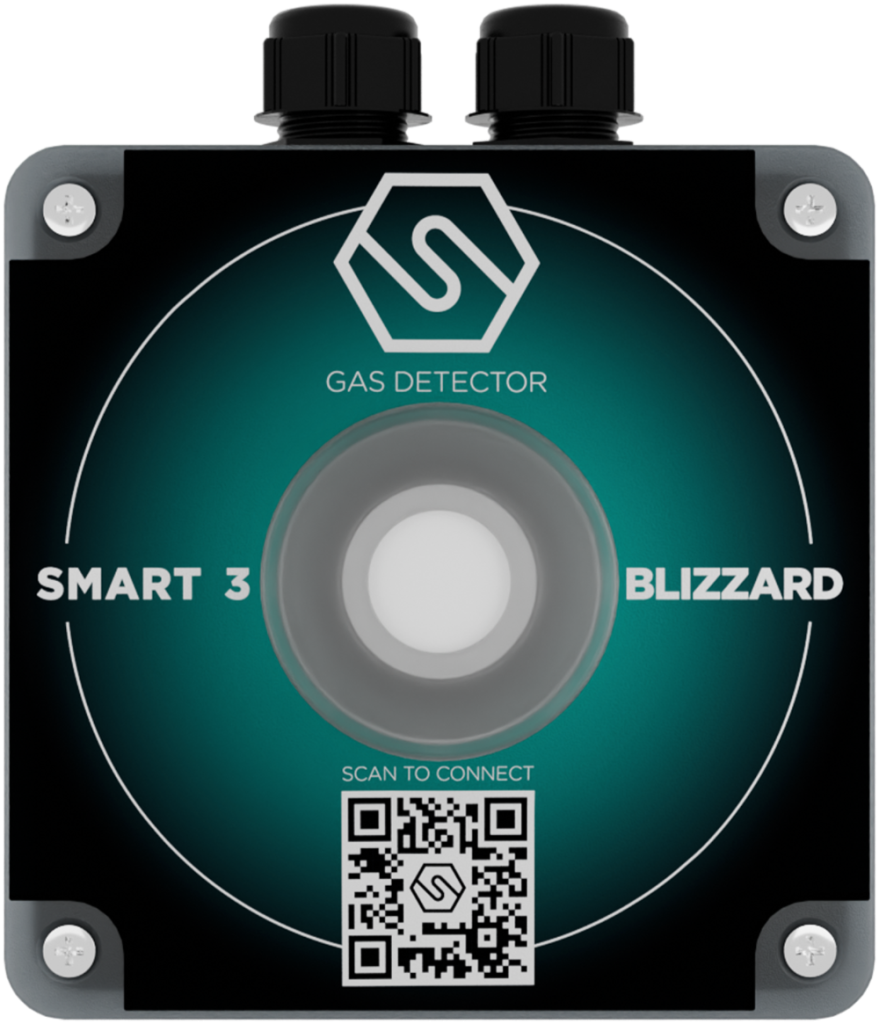

S5116R32- DIFLUOROMETHANE (R-32,HFC-32) Gas Detector 0-100% LFL, 4-20mA - Infrared sensor - SMART3-Blizzard

S5116R32 SMART3-Blizzard refrigerant gas detectors are employed to detect Difluoromethane, Freon 32, HFC-32, R-32, Carbon fluoride hydride, Methylene difluoride, Methylene fluoride, CH2F2 compounds (%LFL) in non classified areas.

SMART3-BLIZZARD is developed to detect refrigerant gasses in non classified areas, as machinery rooms and laboratories.
An infrared sensor is used to detect gasses, thanks to the high reliability and selectivity.
4 smart LEDs illuminate the transparent ring to describe the detector status and an internal buzzer is activated in alarm and fault conditions.
The SMART3-BLIZZARD gas detector has a standard 12-24 Vdc power supply.
The gas detector has 2 relay outputs, and an analog 4-20 mA output.
The polycarbonate case has a global size of 130 x 130 x 74 mm. The box has 2 entries with M20 cable glands. On the sides there are pre-formed guides that can be drilled to add up to 6 M16 cable glands.

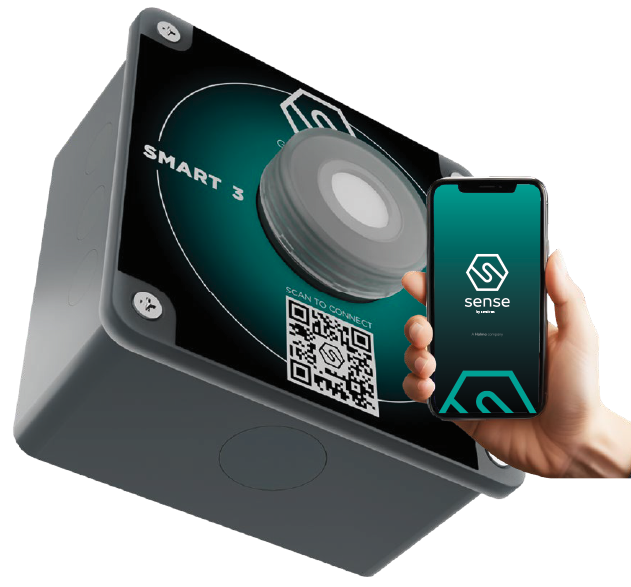

The control and calibration of the detector are carried out via a wireless connection and a dedicated SENSE interface, which can be accessed from a PC, tablet, or smartphone.

FEATURES & BENEFITS

• Non-intrusive field calibration via SENSE interface
• Intelligent high-brightness LED
• s4-20 mA signal
• Standard output 2 relays
• Audible buzzer
• Digital communication with the sensor
• SIL2 certified

Wireless communication with SENSE multi-language interface

• Alarm threshold setting
• Checking detector status
• Download status report
• Download technical report
• Download test certificate
• Upgrade firmware

Gas Detector type : Difluoromethane Gas detector, R-32 Gas detector, HFC-32 Gas detector, Freon 32 Gas detector, Carbon fluoride hydride Gas detector, Methylene difluoride Gas detector, Methylene fluoride Gas detector, CH2F2 Gas detector
