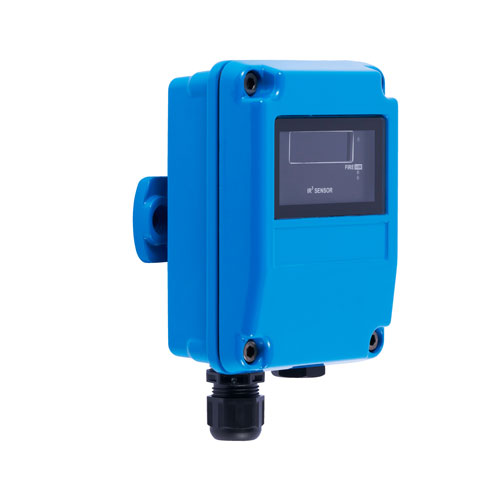

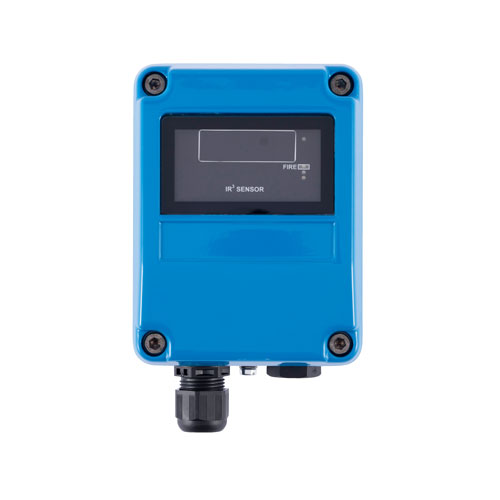

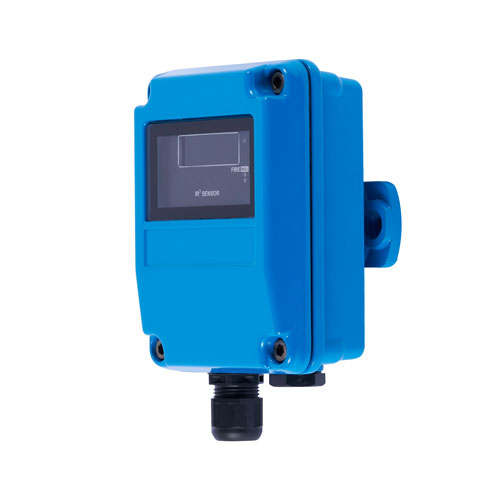

Talentum-16579-00 - Triple IR Intrinsic safe flame detector in die-cast zinc alloy housing - FFE

The Talentum® Intrinsically Safe (IS) triple Infra-Red (IR³) Flame Detector is designed to protect areas where open fi res may be expected and detects almost all fl ames, including hydrocarbon fi res with 4.3 μm emissions through to invisible fi res such as hydrogen.
The IR³ Flame Detector is sensitive to fl ickering, low frequency (1-15Hz) infra-red radiation emitted by fl ames during combustion even if the lens is contaminated by a layer of oil, dust, water, vapour or ice.
This detector has three IR sensors which respond to different IR wavelengths in order to discriminate between fl ames and spurious sources of radiation. False alarms from fl ickering sunlight are avoided by a combination of fi lters and signal processing techniques.
The Talentum® IR3 detector has selectable output options of relay contacts or 4-20mA signal, as standard.

Approved EN54-10
Warranty detector : 3 Years

FEATURES & BENEFITS

• Excellent immunity to false sources
• Tolerant of fumes, vapours, dust and mist
• Suitable for use in Zone 0, 1 or 2
• Suitable for indoor and outdoor areas
• Unaffected by convection currents, draughts or wind
• Proven response to multiple fuel types
• Multi-spectrum detection
• Selectable output options
• Selectable response speed
• Selectable sensitivity levels
• Built in auto and manual test
• Low current consumption
• Fast response to fire

APPLICATIONS

• Refineries
• Fuel Loading Racks
• Chemical Plants
• Waste Recycling
• Nuclear Power Sites
• Storage Tanks
• Engine Rooms
• Spray Booths
• Pharmaceutical Production
• Military Applications
• Marine Industry
• Aircraft Hangars
• Coal Handling
• Printing
• Petrochemical Offshore/
• Onshore
• LNG/LPG Production
• Biomass Storage and Handling


Ziton Refernce : FF767
