Weather Control WRZ8000

SKU: WRZ8000
Weather Control WRZ8000 D+H
 Back to: Natural Ventilation

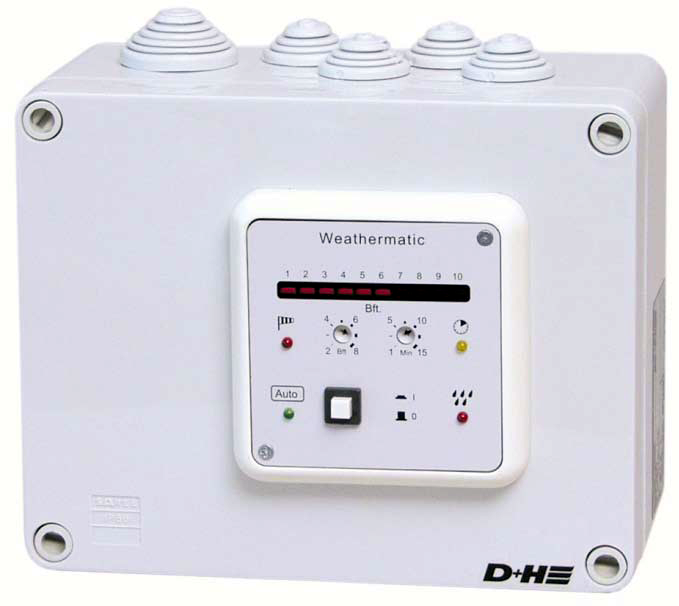

WRZ8000 - Weather Control D+H

The WRZ and WRZ 8000 weather control panels are especially designed for the use in 230V ventilation systems. The system can be extended up to 20 ventilation groups by using cutoff relays TRL 8, in which each group is individually controllable via vent buttons and/or room temperature control. Due to the possibility of connecting up to 20 D+H 230V ventilation drives per group, systems can have up to 400 drives. A central weather function ensures the automatic closing of all ventilation groups in case of strong wind or rain.


- plastic housing
- surface type
- protective system IP 50
- entry for external control, e.g. timer
- possibility of connecting rain detector or wind/ rain transmitter without supplementary modules
- possibility of connecting up to 20 groups via cutoff relays TRL 8, LED display for wind and rain
- exceeding of wind threshold value and automatic operated ON/OFF
- infinitely adjusting of switching point of wind force (2 to 8 Bft.) and signal retention time (1 to 15 minutes ) at control panel
- central weather monitoring (central CLOSED) in conjunction with several TRL 8
- vent buttons, window drives, weather sensors and room, temperature controller available as accessories from D+H
WRZ 8000 in addition with luminous band for wind force (Beaufort) and LED for wind signal memory function, in case of WRZ:
- adjustable switching point of wind force (4 or 6 Bft.) at wind/ rain transmitter WRG 82
- signal retention time: 10 minutes


  • Power supply : 230 VAC/50 Hz, 30 VA
  • Low tension side : 1x floating double-throw contact with neutral position (max. 230 V / 5A), low tension side 24 V / 0,5Afor parallel control (TRL 8)
  • Protective system : IP50
  • Range of temperature : -5°C to +40°C
  • Housing : Polycarbonate
  • Color : RAL 7035, light grey
  • Weight : 1.70 kg
