Calibration gas case VTX+XA

VTX+XA - Calibration gas case - Gas test kit - Sensitron

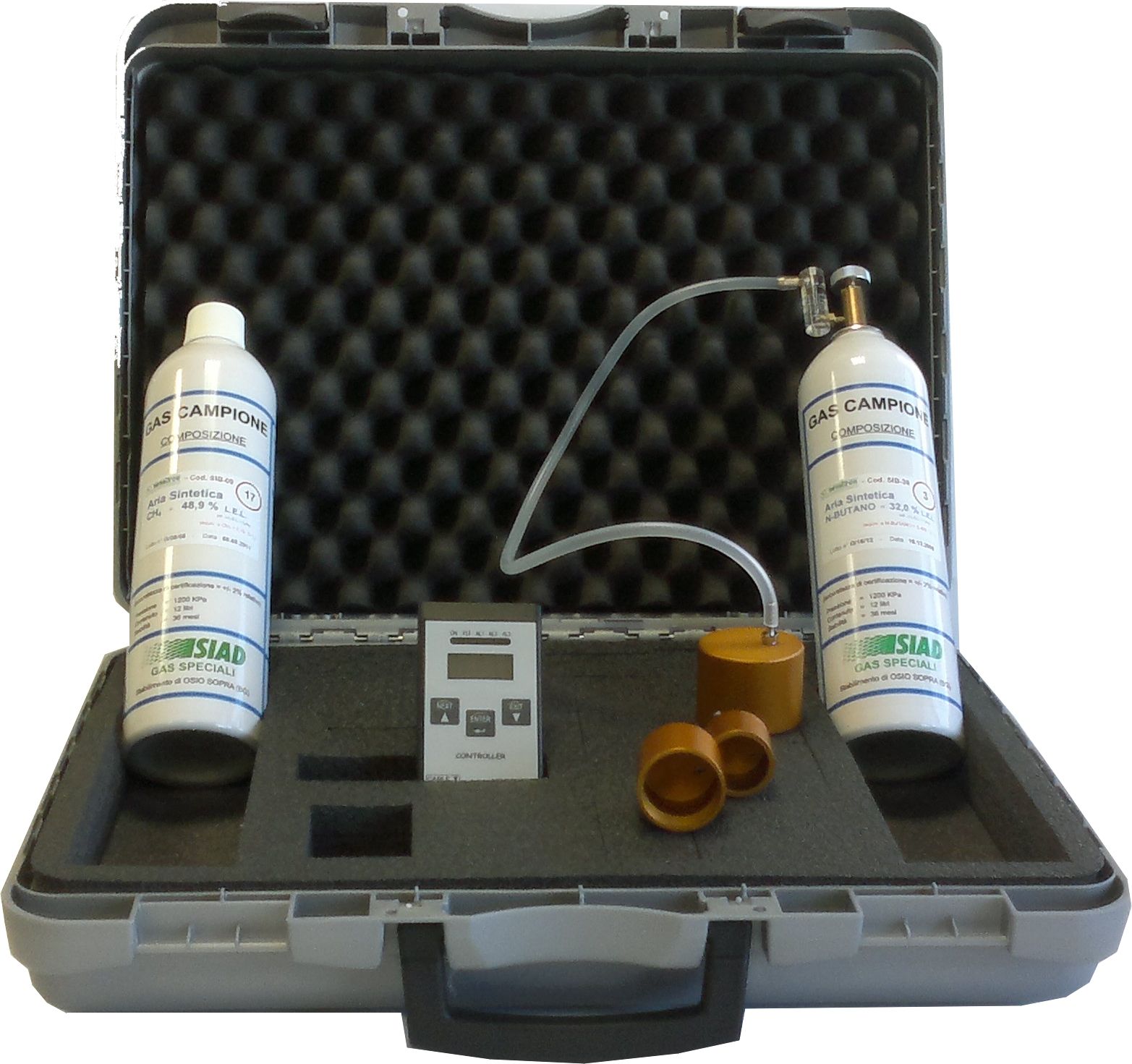

Calibration gas case including one flow indicator for 10/12L gas cylinders, hose and adaptor. (Calibration gas cylinders not included).

The calibration KIT, supplied with a carrying case, comprises the necessary instrumentation to verify in situ the response of Sensitron’ s gas detectors. This operation can be carried out during the initial test of gas detectors, but also during scheduled calibrations. The case comes complete with a flow regulator valve, hose and the ZMCAP/123 calibration cap adapter that allows testing the detector letting the right gas flow to reach the sensor. The case can also allocate 2 sample gas bottles and the calibration keypad. The kit includes three calibration caps of different diameters in order to fit to all three detection heads produced. Both gaskets and screw threads inside the cap allow an optimum tightness between the sensing head and the cap. The hole on the bottom of the calibration cap, must not be plugged since it guarantees a constant flow of
0,2 l/min. This condition allows to have the ideal calibration conditions, identical to that adopted in our Laboratory for the initial factory calibration. The valve
complete with flow meter is to be mounted on the gas bottle to allow a gas outlet at a controlled velocity to obtain accurate data to verify the sensing element status.

Calibration gas cylinders and STS/CKD+ not included
