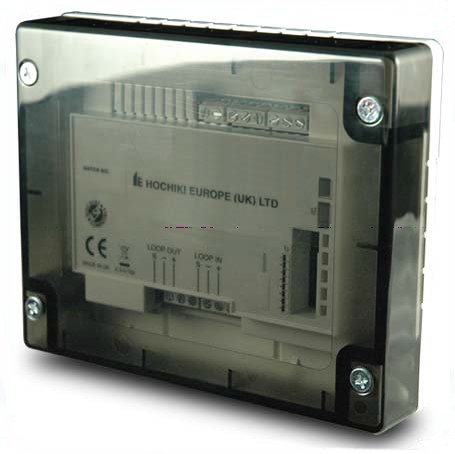

Marine Approved Analogue Dual Input Module CHQ-DIM2/M(SCI)

CHQ-DIM2/M(SCI) - Marine Approved Analogue Dual Input Module with Isolator - HOCHIKI

Model CHQ-DIM2/M(SCI) is a Marine Approved Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment. Also features an integral short-circuit isolator.
A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DIM2/M(SCI), increases the IP rating to IP65.

FEATURES & BENEFITS

• Single Loop Address
• Loop Powered
• 2 Independent Inputs for Monitoring of Volt Free Contacts
• Each Input can be Configured to Monitor either Normally Open or Normally Closed contacts
• "Smart-Fix" Housing System for flexibility
• Features an integral SCI
• Approved to MED by GL
• GL Type Approval
• Approved by LPCB
