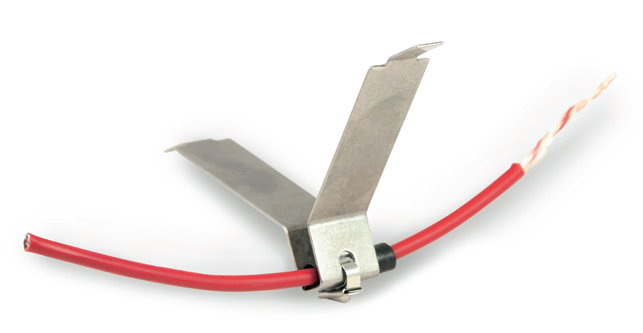

V-Clip for Cable Trays - Stainless Steel

A1174 - Stainless Steel V-Clip for Cable Trays

60mm x 20 mm x 50mm

The V-bracket is designed to secure linear heat sensor cable in Admiralty cable tray installations. A silicon protection sleeve is supplied with the unit to protect the linear heat cable when fastened to the bracket.

Installation

For multiple layers of cable tray the V-Clip can be fixed to the underside of a cable tray supporting the sensor cable protecting the lower cable tray. It is designed to fit into the existing slots in the tray itself making it quick and easy to install. The sensor cable is located in the V-channel which is approximately 60 mm below the tray.

Recommended spacing: 1m

• Easy installation of linear heat cable
• For use on Admiralty cable trays
• Pack of 100 Clips include Silicone Mounting Pad
• Material : Stainless Steel
• Operating Temperature: up to 815°C

Other Reference : 700-632
