Additional Reflective Optical Beam Detector FR5000-031

5000-031 - Additional Head Optical Beam Smoke Detector and Reflective Prism FR5000

The Fireray® 5000 motorised reflective, auto aligning infra-red beam smoke detector can be installed with up to two detector heads per system, thus saving on installation time and costs. In addition, each system controller houses two pairs of fire and fault relays, one per detector. This innovative system has been designed from the ground up to include pioneering technology that fully addresses the needs of the installer and user, both now and in the future.

With its industry leading optics, the Fireray® 5000 is ideally suited for the protection of large areas where the use of traditional detection technologies would prove to be too difficult and/or costly to install.

The Fireray® 5000 combines an infra-red transmitter and receiver in the same discrete unit and operates by projecting a well-defined beam to a reflective prism, which returns the beam to the receiver for analysis. Smoke in the beam path causes a drop in power, which, if below a pre-determined level, results in an alarm signal.

UL/FM Approved
Warranty detector : 5 Years

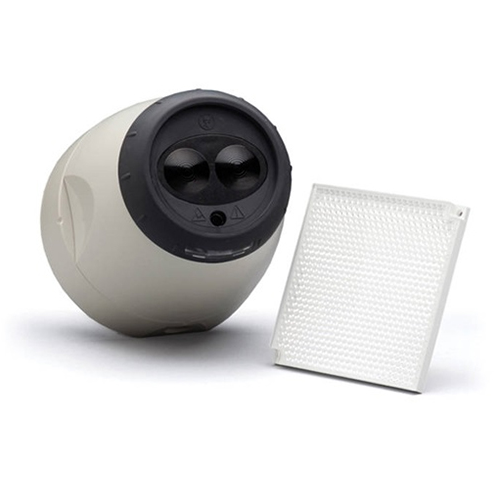

The FIRERAY 5000-031 is delivered with one reflector without controller (To be connected to an existing Controller)
Suitable for distances of 8m to 50m

FEATURES & BENEFITS

• Allows for 2 detectors per system controller
• Each detector configurable from 8m to 100m
• Separate fire and fault relays per detector
• Integral LASER alignment
• Auto-Align fast automatic beam alignment
• Contamination compensation
• Low level system controller
• Logs the 50 most recent events per detector
• Programmable sensitivity and fire thresholds
• 20mm cable gland knock-outs on system controller
• 2-wire interface from system controller to detector
• Working optical path for detector alignment
• World-wide approvals include: FM, EN54:12, UL268, VdS, BOSEC
