Digital Multi (O/T) Detector with Isolator MIPTSES2I

Digital Multi-criteria Multi-sensor Optical/Thermal Detector with Isolator - Pure White - MI-PTSE-S2I Morley-IAS

MI-PTSE-S2I - Digital Multi-criteria Multi-sensor Optical/Thermal Detector with Isolator - Pure White - Morley-IAS

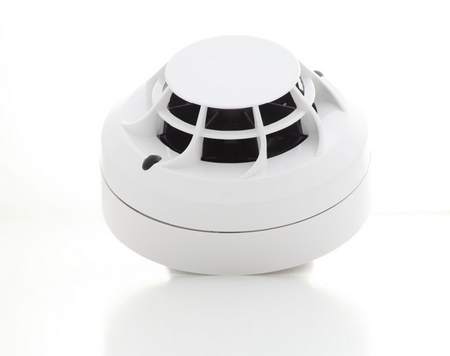

The multi-criteria multi-sensor MI-PTSE-S2 Photo Thermal detector uses thermal assistance to the core photoelectric smoke detector to give enhanced false alarm immunity and faster response to a wide range of incipient fires. The plug-in unit combines two separate sensing elements that are managed by embedded software to act  as a single unit. The MI-PTSE-S2 conforms to EN54-5, a 58°C fixed temperature and rate of rise thermal assistance conforming to EN54-7. The thermal detection function combines thermistor technology with a software corrected linear temperature response.

Also available:
MI-PTSE-S2I-IV - Digital Optical/Thermal Detector with Isolator - Ivory
MI-PTSE-S2 - Digital Optical/Thermal Detector - Pure white
MI-PTSE-S2-IV - Digital Optical/Thermal Detector - Ivory
BCK-200TEAP - Black detector cover for Optical/Thermal MI200-S2 detector


- New mechanical platform with revolutionary chamber
- Includes advanced protocol
- Available with standard short circuit isolator with status control using the advanced protocol
- Tri colour LED offering red, green and amber colour
- Rotary decade address switches 0-159
- Pure white colour to complement modern buildings
- 100% mechanical and electrical backwards compatibility
- New base design to complement the detector
- Certified Bosec, LPCB and Vds following EN54


  • Weight : 97g (base inc)
  • Dimensions : 102 mm x 61 mm in base B501AP
  • Approved to EN54-7, EN54-17, EN54-5
  • CPD number : 0786-CPD-20738
