Alarmline II Digital LHD Cable 88°C (190°F) w/ PP Sheath AD88P-1000

SKU: AD88P-1000
Digital Linear Heat Detection (LHD) cable 88°C (190°F) with Polypropylene Sheath Alarmline II, 1000m - AD88P-1000 - ProReact F1076
 Back to: Linear Heat Detection

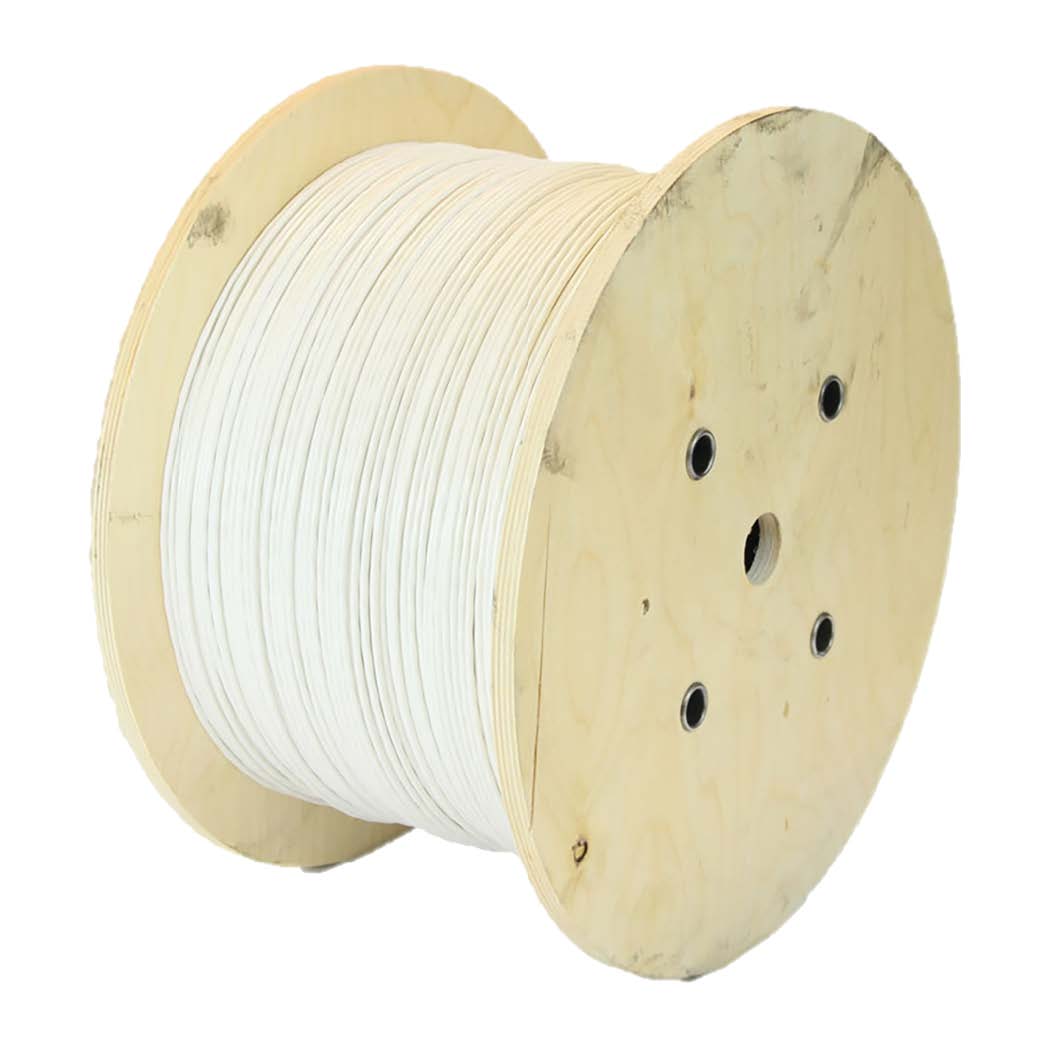

AD88P-1000 - Alarmline II Digital LHD Cable 88°C (190°F) w/ Polypropylene Sheath - 1000m

The AD88P-1000 is a Digital Linear Heat Detection (LHD) cable with a 88°C (190°F) fixed temperature activation rating. It has a Polypropylene outer sheath for increased chemical protection in
caustic environments and is supplied in 1000m lengths.
The AD range of digital sensor cables provides a very simple fixed temperature heat detection system which can be used in many applications where other forms of detection are not suitable.

The AD range of digital LHD cables contains a pair of twisted, low resistance, tri-metallic conductors sheathed with advanced temperature sensitive polymers. The cable operates by softening the insulation of the conductors, the tension of the twisted conductors then causes the two cores to fuse together. The sensor cable provides a simple switch operation which when used with a combination of end-ofline (EOL) monitoring and alarm trigger resistors can signal an alarm to any fire monitoring equipment through any monitored input i.e. conventional detection zone or addressable interface unit.


  • Up to 3000m (10,000ft per zone)
  • Detection along total cable length
  • Optional extrusions for different environments
  • Simple maintenance free installation
  • Suitable for use in hazardous areas
  • RoHS Compliant

  Other Reference : ProReact F1076
