Alarmline II Digital LHD Cable 68°C (155°F) w/ PVC Sheath AD68-0500

AD68-0500 - Alarmline II Digital LHD Cable 68°C (155°F) w/ PVC Sheath - 500m

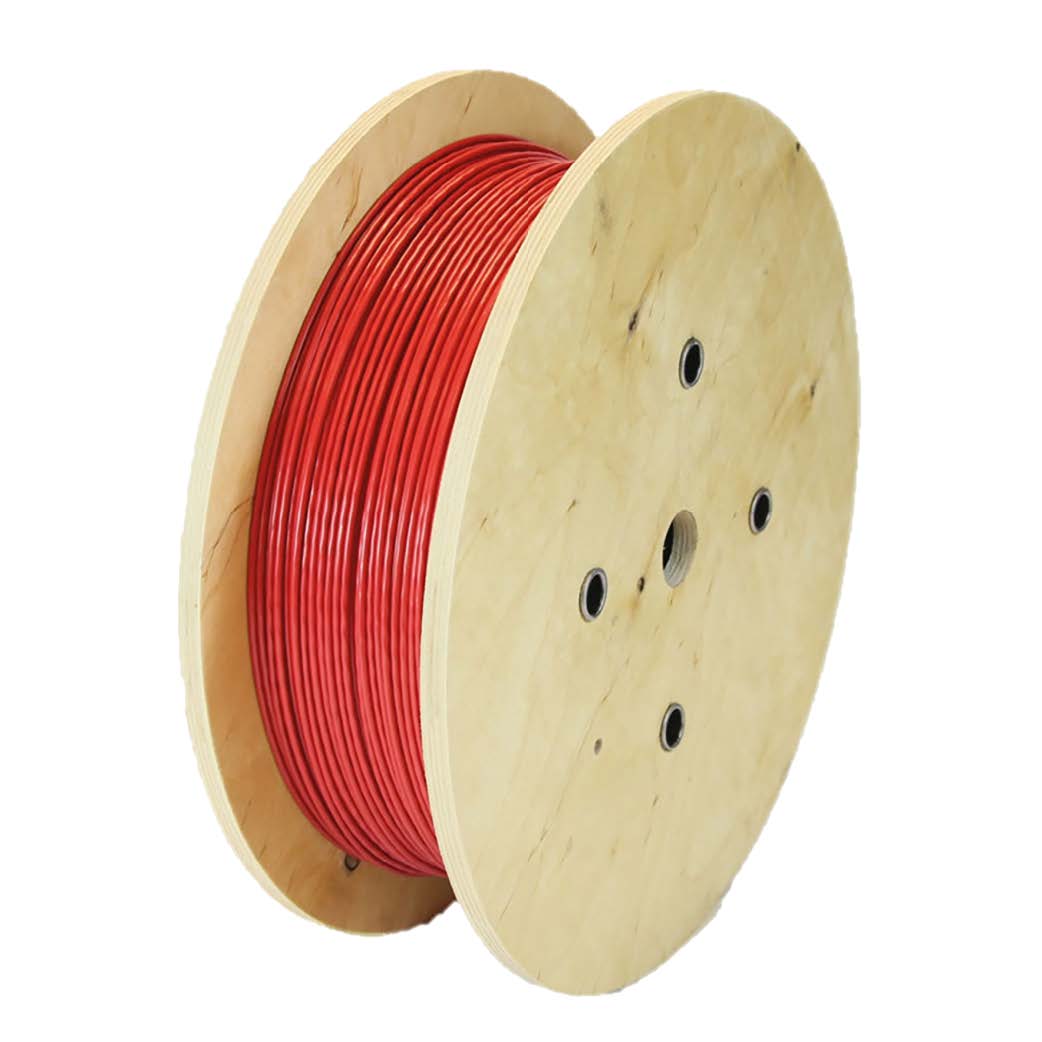

The AD68-0500 is a Digital Linear Heat Detection (LHD) cable with a 68°C (155°F) fixed temperature activation rating. It has a Standard PVC outer sheath making it suitable for internal applications and is supplied in 500m lengths.
The AD range of digital sensor cables provides a very simple fixed temperature heat detection system which can be used in many applications where other forms of detection are not suitable.

Operation
The AD range of digital LHD cables contains a pair of twisted, low resistance, tri-metallic conductors sheathed with advanced temperature sensitive polymers. The cable operates by softening the insulation of the conductors, the tension of the twisted conductors then causes the two cores to fuse together. The sensor cable provides a simple switch operation which when used with a combination of end-ofline (EOL) monitoring and alarm trigger resistors can signal an alarm to any fire monitoring equipment through any monitored input i.e. conventional detection zone or addressable interface unit.

FEATURES & BENEFITS

• cUL/UL 521 approved
• FM approved (Class 3210)
• Up to 3000m (10,000ft per zone)
• Detection along total cable length
• Optional extrusions for different environments
• Simple maintenance free installation
• Suitable for use in hazardous areas

  Other Reference : ProReact F1065
