50m Microwave Bistatic Sensor FMW-50

50m MicroWave Bistatic Sensor 10.525GHz FMW-50 - Forteza
 Back to: Perimeter Protection

FMW-50 - 50m Microwave Bistatic Sensor 10.525 GHz - FORTEZA

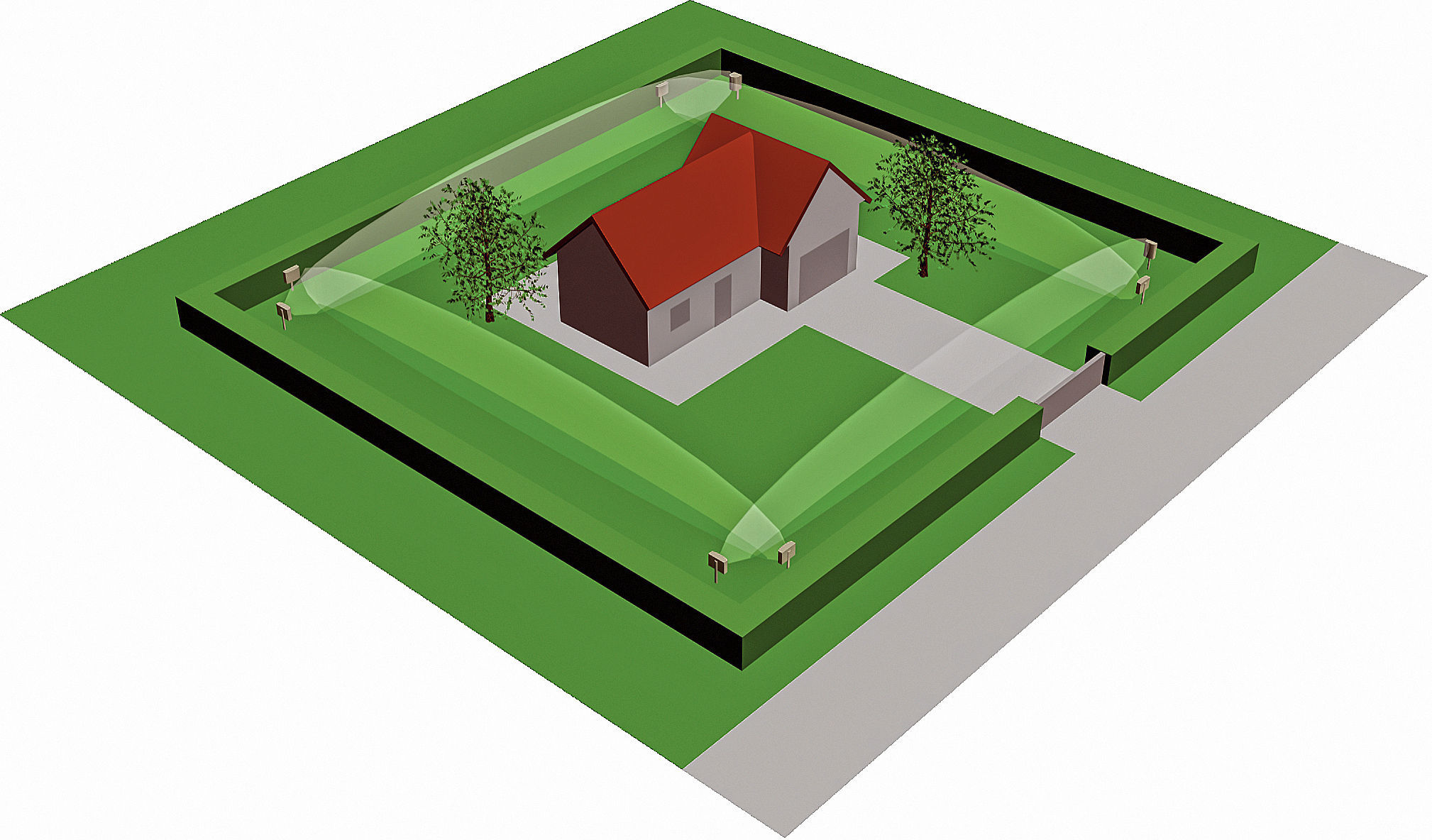

Sensors are used to detect an intruder in the protected perimeter objects. Objects to protect can be industrial enterprises, airports, prisons, power plants, etc.

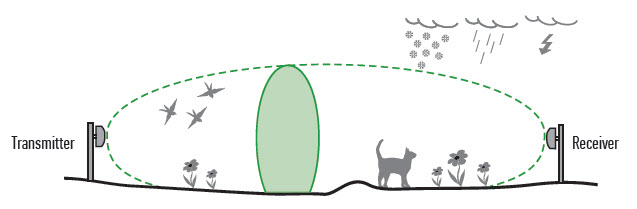

Operating principle is based on creation of an invisible volumetric detection zone between a transmitter and a receiver. When an intruder enters this zone, he makes changes in. The receiver registers these changes and generates an alarm.

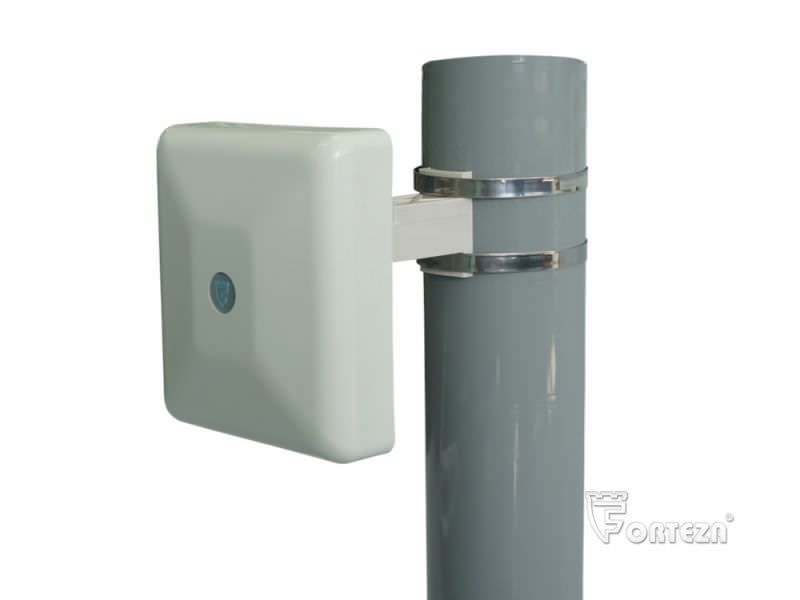

FMW-3/2 - 50m Microwave Bistatic Sensor 9.375 GHz - FORTEZA

Sensors have a simple design and easy to install and adjust.
The unique technology of signal processing provides high detection probability and minimum false alarms. So the sensors have higher immunity to rain, snow, fog and lightning, small animals and low vegetation.
A wide range of modifications in coverage range makes it possible to choose a set of sensors for the best price.
To transmit an alarm, standard interfaces are used. That is why the sensors are compatible with many popular control panels.
Circuit design and special chosen materials allow sensors to operate nearby power lines up to 500 kW.

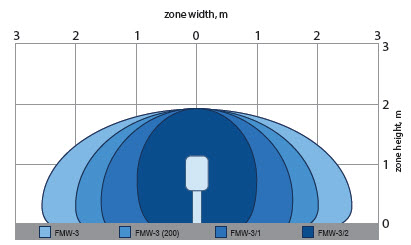

Detection length : 50m
Detection width : 2m
Detection zone height : 1.8m

FMW-3/2 - 50m Microwave Bistatic Sensor 9.375 GHz - FORTEZA


Operation in the X-Band frequency permits to expand the detection zone to complicate the overcoming by an intruder.

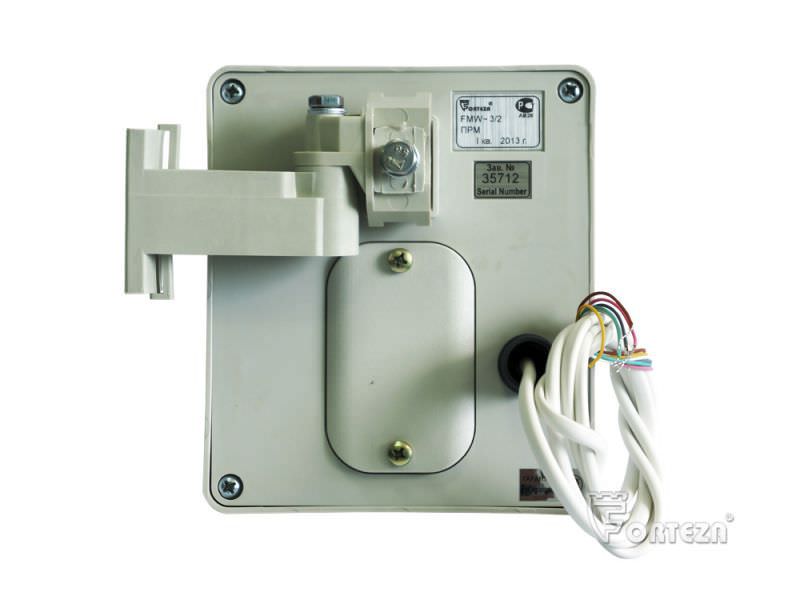

Simple adjustment placed on Rx doesn’t require any high qualification and special equipment.
To adjust sensors, it is enough to have a screwdriver and voltmeter.
Small dimensions make sensors invisible for intruders.
