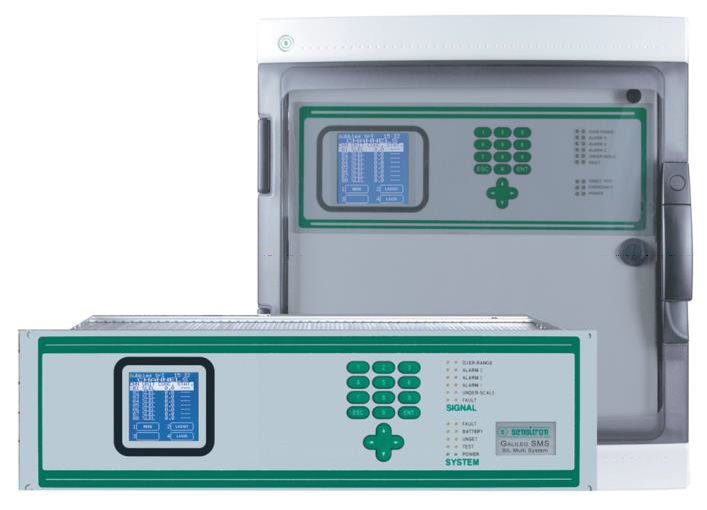

STMTS/S1 - 256 zones Gas Control Panel 19" Rack ATEX and SIL1 Multiscan++S1 Sensitron

The Multiscan++S1 are advanced multifunction gas detection control panel designed to meet with the increasing requests for highly flexible systems.
A powerful microprocessor allows a wide range of self testing facilities to take place to detect and localize possible failures.

The system allows the connection of gas detectors and remote input/output modules via 4 open loops or 2 closed loops.

The control panels can manage and monitor up to 256 gas detectors. These can either be addressable detectors, daisy chained on the available loops, or analog type with 4-20mA transmission, connected via remote 8 inputs cards STG.IN8-S.
The panels come complete with 8 preset relays onboard the units. The system architecture also allows having outputs extended up to 256 via remote 16 output cards STG/OUT16-S with freely programmable Open Collectors. 8-relays boards have been designed to be connected to STG/OUT16-S modules, should relay outputs be required instead of O/C.

The Modules and detectors to connect to the system are:
- 8 analog 4-20mA Inputs Module STG/IN8-S.
- 16 Output Module, freely programmable open collector type STG/OUT16-S.
- 8 Relay Module STG/8REL to be connected to STG/OUT16-S modules.

The control panels is delivered in 19" 3U rack (24VDC power supply required).


  • Event log accessible from the front display or to be PC downloaded
  • RS232 serial port for PC connection for programming or supervising the system via a specific software
  • Printer parallel port for printer connection
  • ATEX and SIL1 certified
  • High brightness LCD Display
  • Real time reading
  • Manages up to 256 inputs and 256 outputs
