Systeme de Regulation Automatique de Ventilation 1A GVL8301K

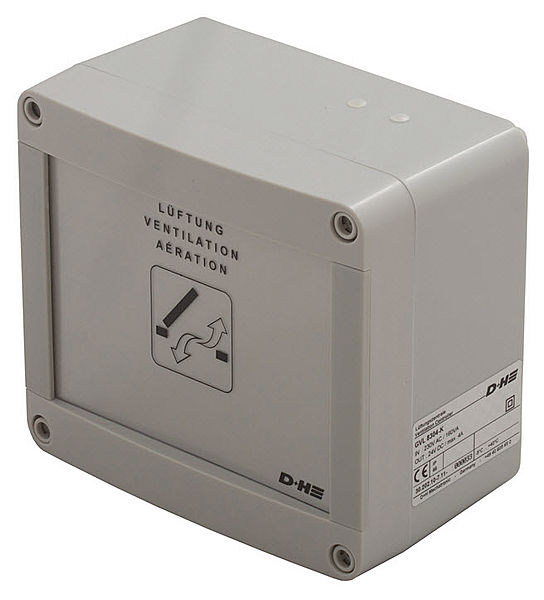

GVL8301-K - 1A Ventilation Control Panel D+H

The GVL 8301-K ventilation control panel is especially designed for use in separate rooms or conservatories. A wide variety of functions can be added using D+H accessories, e.g. weather automatic and room temperature control. It is possible to connect several ventilation control panels in order to enable central switching, e.g. closing in case of wind or rain or time-controlled ventilation.

FEATURES & BENEFITS

- compact design for 0.5 A or 1 A actuating current in one group
- plastic housing, surface type, protective system IP 54
- ventilation safety function (deadman’s principle OPEN/CLOSED), can be firmly encoded
- entry for external control, e.g. timer
- possibility of connecting rain detector or wind/rain detector without supplementary module
- vent buttons, window drives, weather sensors and room temperature controllers available as accessories from D+H

TECHNICAL SPECIFICATIONS

• Power supply : 230 VAC/50 Hz, 30 VA
• Output : 24VDC, max 1A
• Protective system : IP50
• Range of temperature : -5°C to +60°C
• Housing : Plastic
• Color : RAL 7035, light grey
• Weight : 0.85 kg
