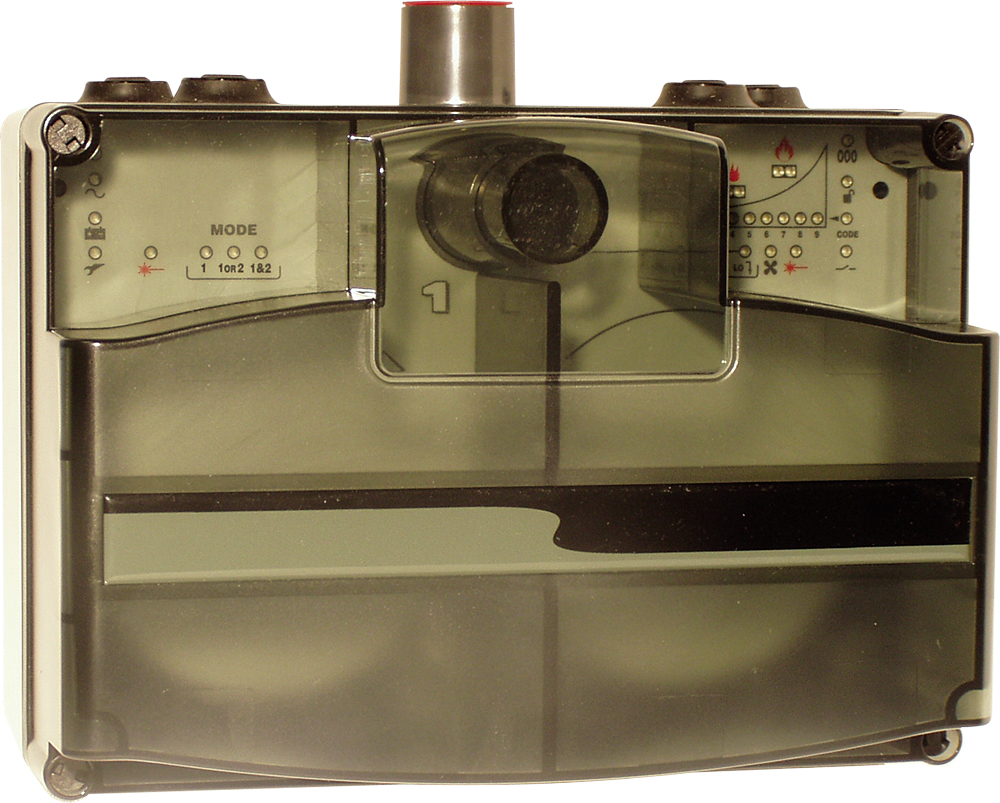

Système d'Aspiration Simple Canal A310E

Système d'Aspiration Simple Canal, peut contenir 1 ou 2 détecteurs Laser A310E System Sensor
Description du produit

A310E - Système d'Aspiration Simple Canal System Sensor

The A300 series is a range of aspiration products that provide different levels of sensitivity that work in various situations. This also contributes to a decrease in false alarm occurrence.
The A310E single channel system can hold one or two Laser detectors depending the required sensitivity level. The detectors are mounted in B524EFT-1 isolator bases.
The detector(s) are not included.


- Single channel aspiration smoke detection
- Integrated into the main fire detection system
- Compatible with addressable or conventional detectors
- Can be used with any address
- Suitable for “Double knock” or redundancy detection strategies
- Up to 1000m2 coverage through a 100m pipe with 18 holes
- Integral display with local user programmable functions
- In-line air filter
- Local indication of airflow management status
- Adjustable airflow speed with visual monitor
- IP65 waterproof enclosure
- Design application for configuring the pipework


  • Weight : 1.670 kg
  • Dimensions : 194 x 258 x 145 mm
  • Material : PC/ABS
  • Maximum pipe length : 100m
  • Operating voltage range : 18 to 30 VDC (24VDC nominal)
  • Temperature range : -10°C to +55°C
  • IP rating : IP65
  • Relative humidity : 10% to 93% non-condensing
  • VDS Approved : G206067
  • CPD number : 0786-CPD-20583
