Mini Detecteur de Flamme Triple IR Portée 10-40m 20/20MI-1-F SharpEye SPECTREX Mini IR3 Flame Detector 10-40 m Range 20-20MI-1-FMini Detecteur de Flamme Triple IR Portée 10-40m 20/20MI-1-F SharpEye SPECTREX Mini IR3 Flame Detector 10-40 m Range 20-20MI-1-F

Mini Detecteur de Flamme IR3 Portée 10-40 m 20-20MI-1-F

Mini Detecteur de Flamme Triple IR Portée 10-40m pour zones non classifiées 20/20MI-1-F SharpEye SPECTREX
1672,94 €
1672,94 €
Prix de vente hors-taxe: 1672,94 €
Description du produit

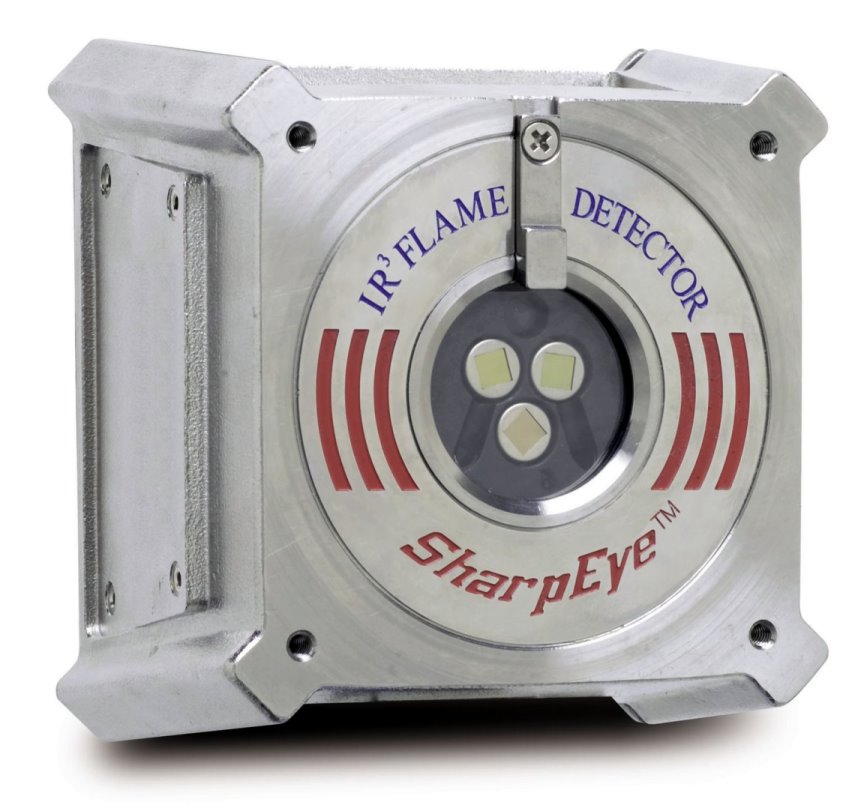

20/20MI-3-F - Mini Détecteur de Flamme Triple IR (IR3) Portée 10-40 m SharpEye SPECTREX

The 20/20M Mini Series Flame Detectors are high performance, unique IR3 and UV/IR flame detectors featuring lower cost, lower power, and more compact structures. The mini detectors are highly resistant to harsh environments, immune to false alarms and are designed for use in OUTDOOR or INDOOR applications. The IR3 model is also available as intrinsically safe (I.S.) approved format. The detectors’ small size, low cost and low power allow easy installation in small or congested areas where Ex hazardous area approvals are not a prime requirement. Both models are packaged in rugged, stainless steel enclosures that are less than 50% of the size of our standard explosion-proof detectors and weigh only 2.5 lbs (1.2 kg)

The 20/20MI-1 is an economical and compact Triple IR (IR3) Flame Detector with the highest immunity to false alarms, in a rugged stainless steel housing. It is available in either general-purpose, non-Ex approved or intrinsically safe approved (EExia) format.


  • Immune to False Alarms
  • Large Field of View (100° horizontal/vertical)
  • Low Power Consumption
  • High-Speed Response
  • Standard 4-Wire Connection
  • 4-20mA Sink or Source (3-4 wires) Configuration
  • RS-485 Modbus Compatible
  • Automatic and Manual Built-In-Test (BIT)
  • User-Programmable Function Configurable via software from a PC or handheld device
  • MTBF Minimum 100,000 Hours
  • 3 Year Warranty
